Dried Stick Noodle Making Machine Line

Material: dough
Capacity: 3T/8hours
Loading Port: Shanghai

Click For Offer Send Email
Back in front of the product
  • Details
  • Technical Data
  • Message
The dried stick noodle machine with the advanced technology,high degree automation,frequency conversion,PLC controlled,the weight of noodle cake can be adjusted automatically while the line's running,the temperature of the frying can be auto controlled.the line running safety.and easy maintenance.The oil content of the noodle cake is low and the capacity of the line is high.The mixer with double shaft and speed,more water feed,more even for the flour and water's admixture,the feeder with type double pan to guarantee the flour's according aging,the roller with 9 pairs of alloy steel,and steaming noodle's flavor by soaking process.

RELATED MACHINE:
Dry noodle machine,Fresh noodle machine

dried stick noodle making machine|fine dried noodle macking machine

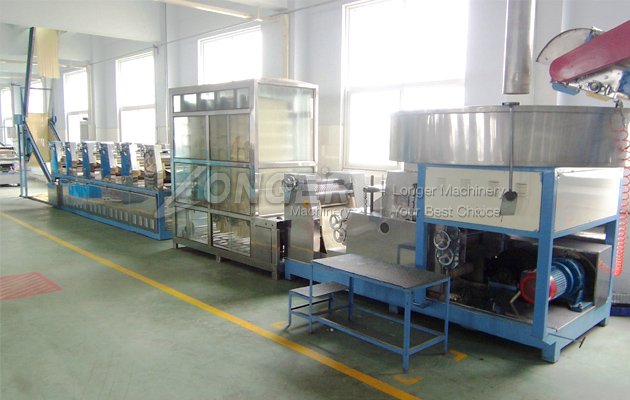

Dried Stick Noodle Machine Line
 Capacity: 3T/8h
No. Equipment Name Model Qty Remark
1 Measure and Feeding Machine LGYSJ10 1set Pump 0.75kw，Volume 110L，
With liquid level display，round tank, stainless steel.
2 Double Shaft and Speed Mixer LGHMJ200 1set Motor power 6.5/8kw, 150kg/batch，manual opening，food contact parts are made of stainless steel and nylon.
  Falling Powder Bucket   1pc Stainless steel, produce according real install size.
3 U Type Dough Ripening Machine LGXHJ200 1set   Power 4kw, 200kg/batch，1600×800×750
Contact part is stainless steel.

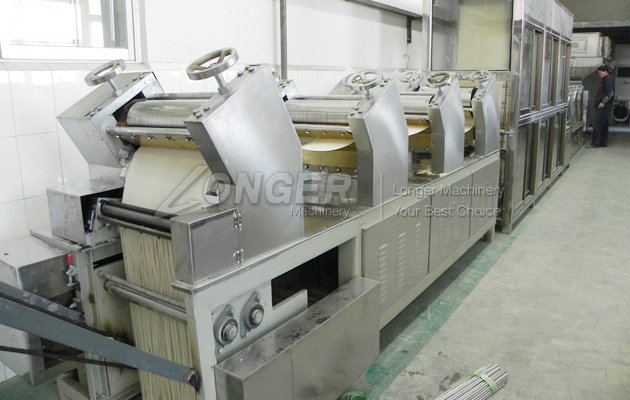

4 Compound and Continuous Dough Rolling Machine LGMT7-50 1set Slitting width 350mm, power 5.5kw+5.5kw, 7pairs steel roller, machine is steel structure(frequency control), roller diameter, φ180×2、φ240×1、φ180×2、φ162、φ120
5 Hanging Stick Supplying Machine LGGT450 1set Power 1.5kw (frequency control), noodle length adjustable, front and rear uniformity adjustable.
6 Noodle Cutting Tidy Machine LGZJQ800 1set Power 1.1kw
7 Hanging Rising Machine LGSJ350 1set Power is supplied by Hang Stick Supply Machine, carbon steel.

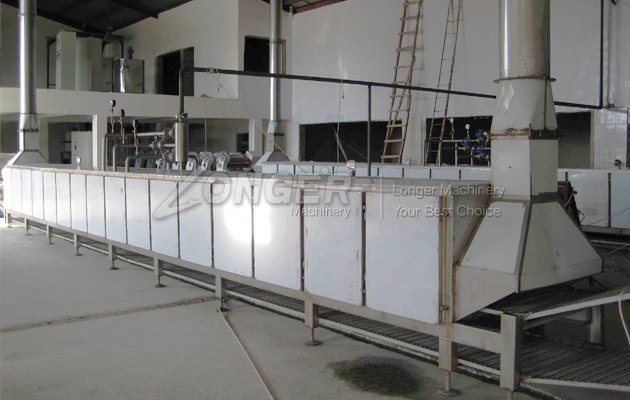

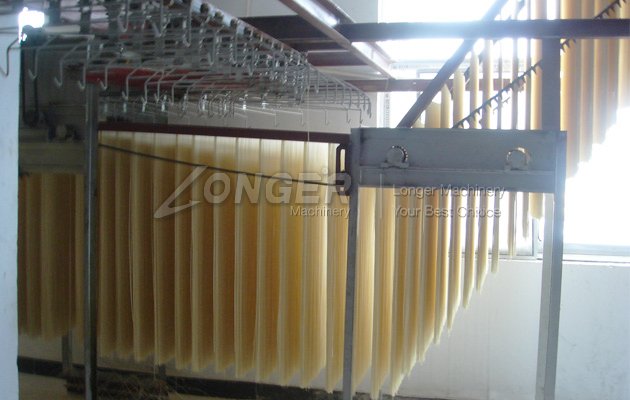

8 Chain Plate Drying Machine LGPHF30 1set Main power 3kw (frequency control), industrial fans 0.75 kw ×13 sets, moisture removal fans, 4 kw×1set(or 0.6kw*6sets), 4 rows rod, length 50m, drying time 4hours. Stainless steel noodle hanging rods 4000pcs.
9 Sideway Hang Down Machine LGXJ350 1set Power 1.5kw(frequency control), carbon steel.
10 Automatic Hob Cutting Machine LGZQM50A 1set Noodle length adjustable 120～290mm, power 0.8kw.
11 Electric Control System   1set Host to drying room main transmission adopts to frequency control, PLC control, Domestic electrical components, not include cable
