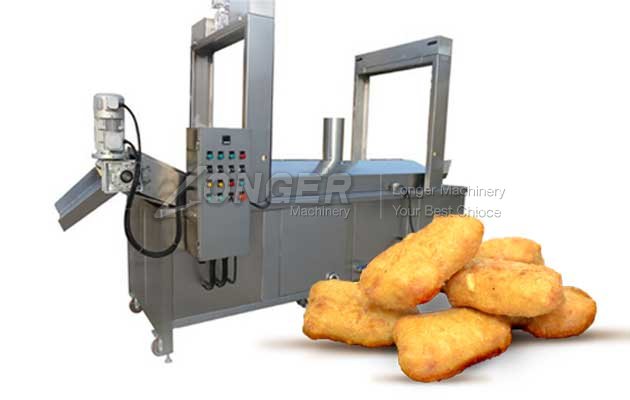

The Automatic Chicken Nuggets Frying Machine with pure oil design, heat transfer oil heating double-layer belt conveyor, to achieve automatic frying, thermal oil heating oil temperature constant, good quality does not produce black oil phenomenon, frying time adjustable to achieve automation .The Design of double-layer mesh belt can be transported at the same time to achieve the purpose of fading products to fry.

1) Heat conduction oil heat exchanger with carbon steel seamless steel pipe design. Diameter with 48mm three-layer design heat transfer area of ​​60 square meters of carbon steel heat exchanger to prevent slag.
2) Heat transfer oil heat exchanger design in the middle of the middle belt can reduce the amount of oil above 2000kg. At the same time the net can be achieved scraping fried dual-use.
3) Design of heat transfer oil heat exchanger and mesh belt at the same time to enhance the convenience of cleaning.
4) Before and after the design of the second side of the scraper system at any time the food residue transported to the pot outside
5) equipped with two pieces of slag to facilitate slagging.
6) design three sets of simultaneous upgrade can simultaneously enhance the hood mesh and heat exchanger.
7) hood with a three-piece design of the whole row of smoke holes.
8) The drive system uses two sets of separate drive to achieve smooth transmission.
9) using frequency control, mesh belt speed can be achieved any adjustment
10) using stainless steel distribution box. PLC control touch screen operation.
11) using a centrifugal oil filter device, two pumps.
12) frying machine with two oil drum diameter 1100mm × 2000mm.
